MODEL - SB-5000L
The Retractable Laser Weld Screens feature a spring-tensioned roller system that extends to 20 feet and retracts automatically for easy use and storage. These screens can be installed in various locations, offering top access and ensuring unobstructed overhead crane movement when not in use. Built for durability and adaptability, they provide effective welding protection in diverse industrial environments.
Possible Layouts
Collapses To Allow For Full Access

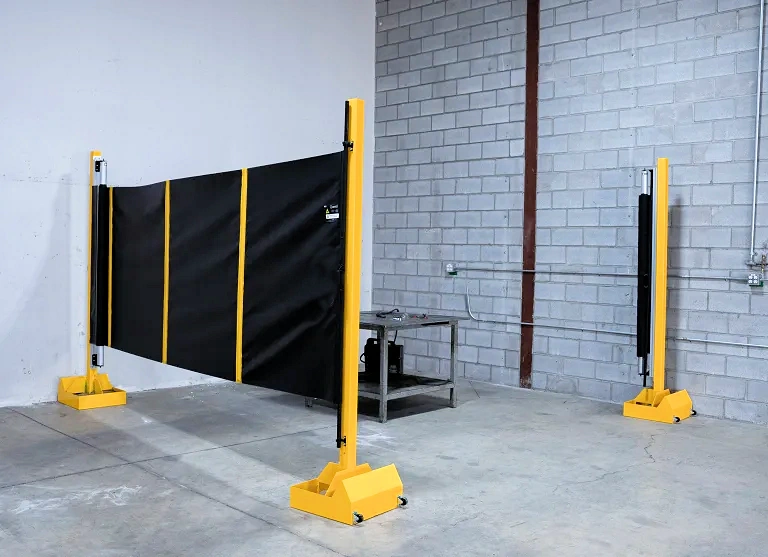

Shades Roll Out When Needed

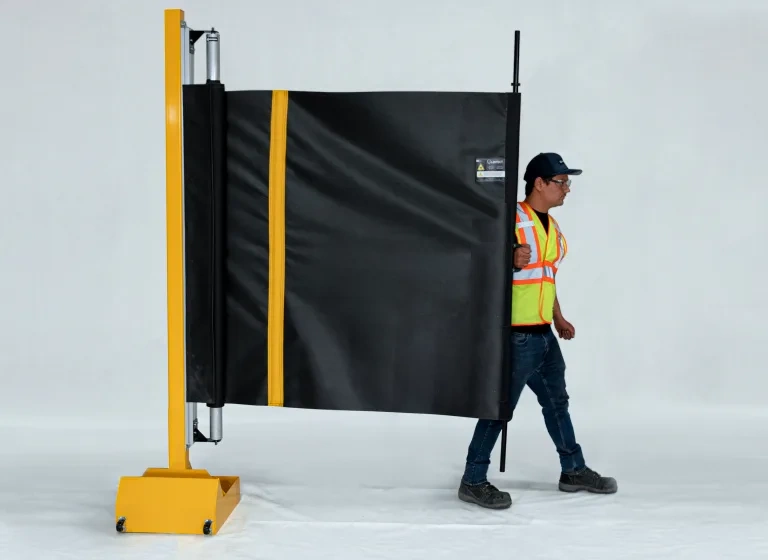

Once it is time to begin laser welding operations, the operator walks the shades to an adjacent post, and then he can begin welding.
Shades Roll Up When Not Needed
The laser welding screens roll up when not needed to provide full access into and out of the laser welding cells.
Roll Away When Not Needed
Unlike anchored laser welding screen welding cells, the SB-5000L can be tilted backward and rolled away from production for 100% access!
Retractable Laser Welding Cells
Portability For Speed and Flexibility
Roll Up Laser Welding Curtain Benefits
- Increased flexibility for changing welding cell needs.
- It takes up less space for a more efficient workplace.
- Reduces congestion where materials need to flow.
- Connect up to four shades to a single post for multiple cells.
- Allows for access for overhead cranes that move material in.
Roll Up Safety Guard Benefits
- Heavy duty steel posts securely hold the laser roll up welding curtains.
- The vertical pedestal is bright yellow for high visibility and safety.
- Shades can connect to existing walls or beams with included hooks.
- Adapted to different environments and working conditions.
- Provides optimal protection with a max irradiance of 250W/cm2
Increased Laser Protection
- The Retractable Laser Weld Screens are designed for mobility and convenience.
- Allowing for quick and efficient relocation to any welding site as needed.
- Eliminating the need for large sections of stationary guards.
- Provides better protection against welding lasers, welding sparks, heat, ultraviolet light, and flying debris.
Watch The Curtains in Action
Shade Material
- Opaque black laser blocking shade
- Provides optimal protection with a max irradiance of 250W/cm2
- Designed specifically for the IPG LightWeld product, ensuring maximum compatibility and effectiveness.
- Fire retardant | CFM Rated
Pedestal
- Dimensions: 20.40" x 20.40" x 96" tall
- Weight w/o ballast: 105lbs
- Est. weight w/ ballast: 205lbs
- Weight for base pans not included
- Pedestals without shades can also be purchased
- Springs are rated for up to 250,000 cycles
Shade Attachment
- Shades attach with supplied J-Hooks
- Can attach to another post or existing walls, beams..ec
- 4 shades can connect to a single post
Shade Size
- 5' 6" high x 20' wide
- Custom shade sizes available (No taller than 6' or wider than 20') +$280
WARNING: Laser Safety Officers (LSOs) are responsible for assessing the work environment, beam delivery systems, and visual conditions to determine the appropriate Personal Protective Equipment (PPE) needed to safeguard against harmful laser radiation. It's crucial to never use lasers without proper protective gear and adequate training.
