Curtain Split
DESCRIPTION:

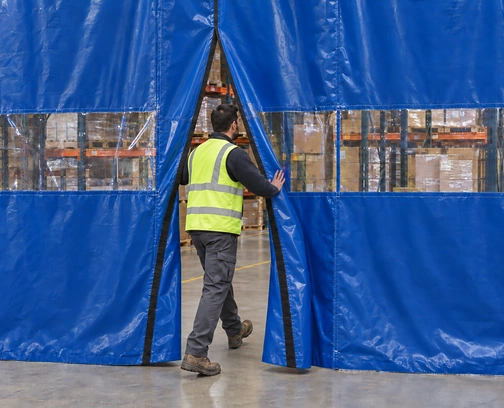

The most economical entry option is a simple split in the curtain. This allows people and product to slip through without much hassle. If the curtain has curtain track the curtain can then be rolled open as well. The split does not even have to have the Velcro.
BUDGET PRICE:
- No Charge if just a split
- $2.75 Per Linear Foot – If Velcro
- $8.00 Per Linear Foot – If Magnet

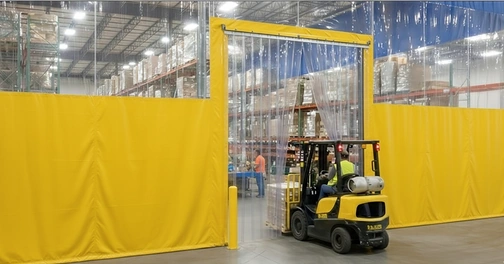

Strip Door | Freestanding
DESCRIPTION:
A 3″ x 3″ frame with PVC strips can be used for access. The frame has thick base plates on both sides that anchor to the concrete floor. The main curtain is then Velcro attached or bolted to the outside perimeter of this steel frame.
BUDGET PRICE:
- 4′w x 8’h – $1400
- 12′w x 12’h – $2720
- Other sizes Available… please inquire

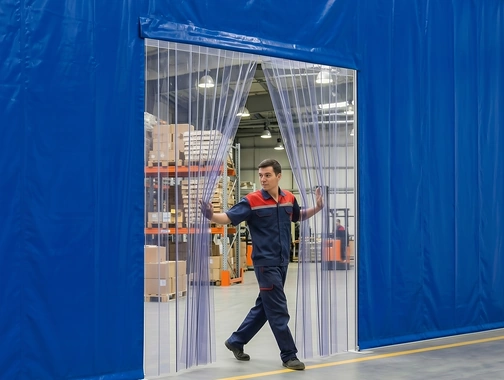

Strip Door | Sewn In
DESCRIPTION:
The strip curtain door can be sewn into the curtain for greater flexibility of moving the curtain out of the way should the need arise. The maximum size is 10′ x 10′ but these are not made for motorized traffic as they put too much stress on the curtain wall. The curtain wall material must also be 18oz Vinyl or thicker for durability.
BUDGET PRICE:
- 3′w x 7’h – $450
- 6′w x 7’h – $550
- Other sizes Available… please inquire

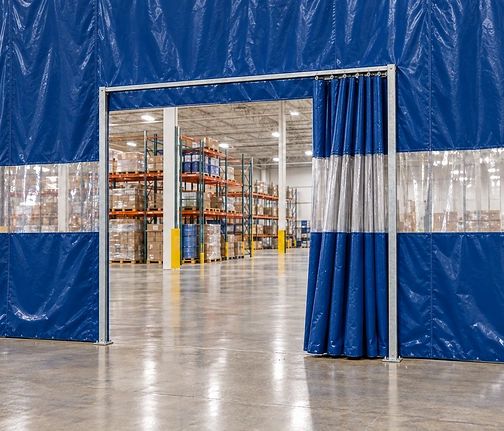

Curtain Door | Freestanding
DESCRIPTION:
A free-standing frame can also be used to supply a side to side curtain on rail which can be pushed out of the way. This can also be supported from above with chain, cables, or threaded rod drops. The curtain door simply rolls on curtain track for easy movement.
BUDGET PRICE:
- 3′w x 7’h – $540
- 8′w x 10’h – $735
- 10′ x 8’h – $700
- Other sizes Available… please inquire

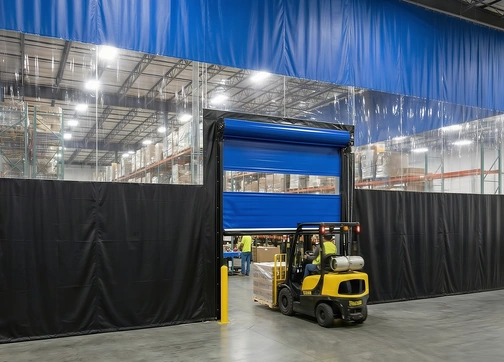

Roll Up Doors | Powered
DESCRIPTION:
Supported with a free-standing frame the power roll up doors can be opened and closed via remote from a fork lift. Door styles and prices vary based on frequency of opening and closing, speed requirements and size. View Models
BUDGET PRICE:
- 10′ x 10’h – $5,350
- Other sizes Available… please inquire

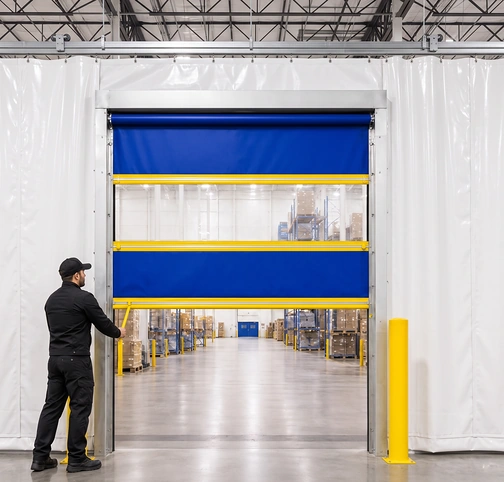

Roll Up Doors | Manaul
DESCRIPTION:
Supported with a free-standing frame the manual roll up doors are opened using man power. They can be chain operated or spring tension operated. They are ideal for applications where the door will be left closed or opened for long periods of time with less frequent use. If frequent opening and closing is required then it is best to use a motorized roll up door. Manual, Spring Loaded (Sizes up to 12′ x 12′) | Manual, Chain Hoist (Sizes up to 16′ x 16′) View Models
BUDGET PRICE:
- 10′ x 10’h – $4,600
- Other sizes Available… please inquire

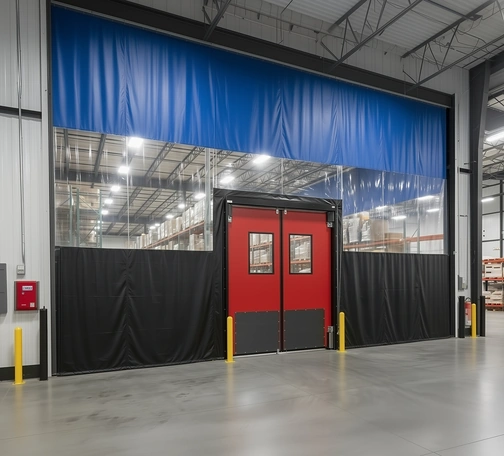

Swinging Doors
DESCRIPTION:
A free-standing industrial swinging door can also be provided for access. Also known as impact doors, these heavy duty doors can take a lot of abuse from carts, fork lifts or heavy foot traffic. The doors freely swing both forward and backwards like restaurant kitchen doors. They are available in both double doors for larger motorized traffic and single doors for foot traffic. View Models
BUDGET PRICE:
- 3′ x 7’h – $1200
- 10′ x 10’h – $3400
- Other sizes Available… please inquire
Common Questions
What if I have to have my curtain wall open?
If you have to have your curtain wall retracted and out of the way then a freestanding option is probably not ideal. All of the freestanding door options have to be bolted to the floor. If a side to side curtain wall is required then a sewn in strip curtain or a simple Velcro split would probably be your best option. Another option is to have some of your curtain wall retractable on curtain track while leaving the portion that has the freestanding door as static non moving.
Do The Free-Standing Frames Require Welding?
There is no welding required for any of our entry options. The freestanding frames simply bolt together. They also have base plates which have to be bolted to the concrete floor. Once fully assembled, you simply attach the curtain wall to the outside of the freestanding frame.
