Choosing a Strip and Overlap

Use this simple matrix to choose the ideal strip width and overlap for your application.

Personnel = Foot traffic
Light Duty = Foot traffic and pallet jacks

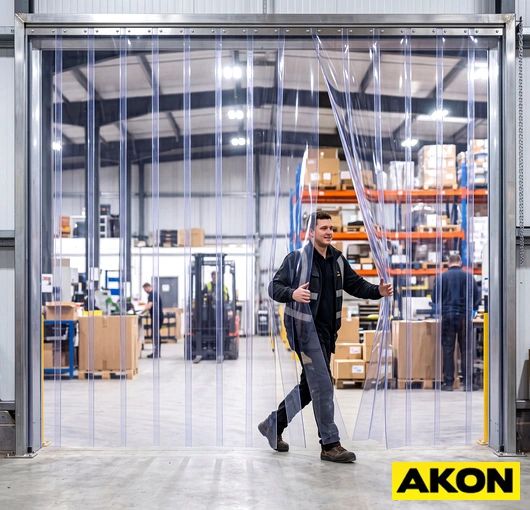

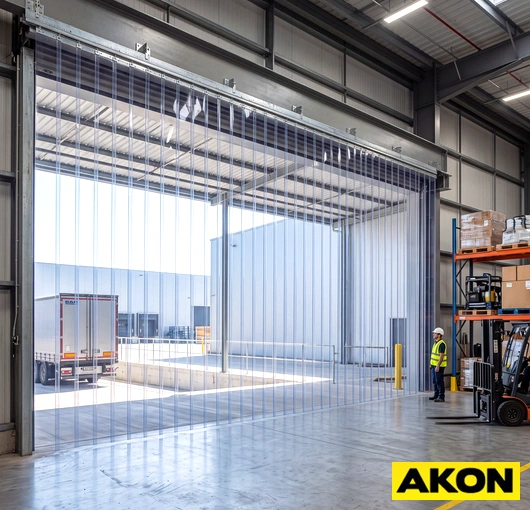

Heavy Duty = Motorized traffic with occasional foot traffic

Overlaps

How does that work if I choose to punch my own strips?

If you want to save some money, we supply you with a kit to convert PVC bulk rolls into PVC strips ready for hanging. This option is a great way to get the same quality material but at a greatly reduced price. The kit includes a punch, hole placement ruler, and marker.

Step 1: Cut strips to proper length

Step 2: Mark the Hole Locations

Step 3: Drill bit the mounting holes into PVC strip

What is the spacing on the holes for the strips?

The holes are on 2" centers, as shown below. The below strip is an 8" wide strip, but all of the strips have the same spacing so that the strips fit studded hardware systems.

Should I order the strips a little taller than the opening?

Only if you want the wall mount hardware. With wall mount hardware, order the strips 6" taller and 6" wider than the opening you are trying to cover since you are mounting them to the face of the opening. Otherwise, order the strips to the exact size of the opening.

Are the height of the strips measured from the hole or the top of the strip?

The height is measured from the top to the bottom of the strip. The holes are located .75" down from the top of the strip.

How do you cut the strips in the field?

You use a utility knife and a straight edge to keep the cut straight.

Static Mount

• Header Mount
• Wall Mount
• Universal Mount
• Threaded Rod Mount (Just a Feature of Universal Mount)

Free-Standing Mount

• Supported from the floor up
• Used in open floors when you can support from above
• Click here for this style

Rolling Hardware

• Allow the strips to roll out of the way
• Ideal for complete access when strips are not needed
• Note the strips roll like a barn door and do not fold up
• Click here for this style

Tube Mount

• Fits up to 2" diameter pipe
• Each pipe clamp is 4” wide and holds 2 strips (overlapped)
• Click here for this style

Description

• Clear - Stays clear 20% longer
• Temperature Range - Between 0°F and +150°F.
• UV Absorber - Strips will not discolor
• Crystal Clear - Extrusion Clear Processing for maximum line of sight
• CFM and NFPA-701 flame retardant certifications
• 2 Year warranty on manufacturing defects - Strips
• Need other colors, click here?

Ratings and Certifications

• CFM and NFPA-701 flame retardant certifications
• Exceeds OSHA requirements
• 5 Year warranty on manufacturing defects

Hole Spacing

The PVC strip curtains have holes punched every 2" (see example of 8" wide strip below). This allows the strips to fit most of the strip curtain hardware on the market. Please note that you can also purchase the strips without any mounting holes. Some customers choose to use their hardware and punch their mounting holes onsite. Loop style is also available for mounting to bars and tubes. If you want just the strips, then on this form, select "no hardware."

Lead Time

• Ships in 2-3 work days
• Ships UPS or FedEx. You can also specify your shipping account

Warranty

• Strips - 5 year warranty on manufacturing defects
• Hardware - Lifetime warranty on manufacturing defects
