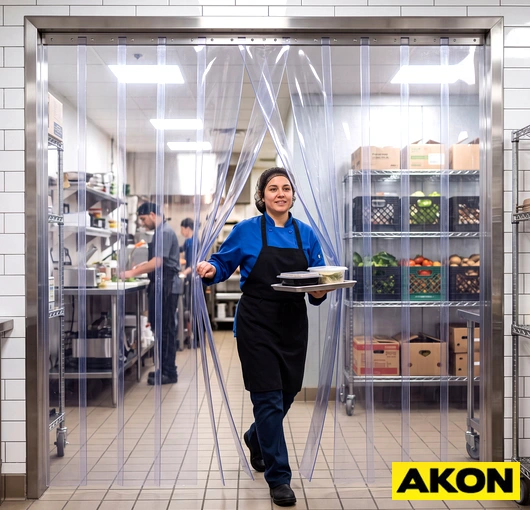

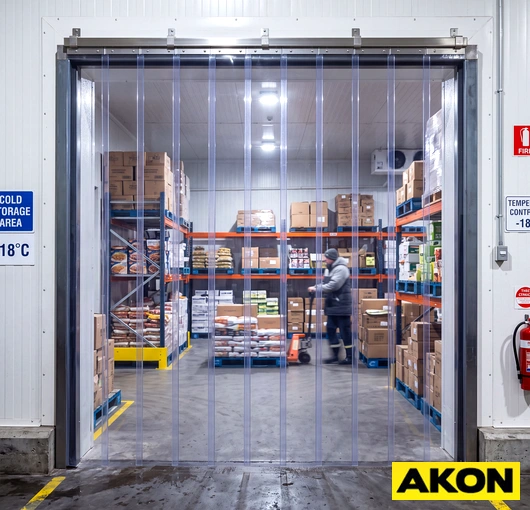

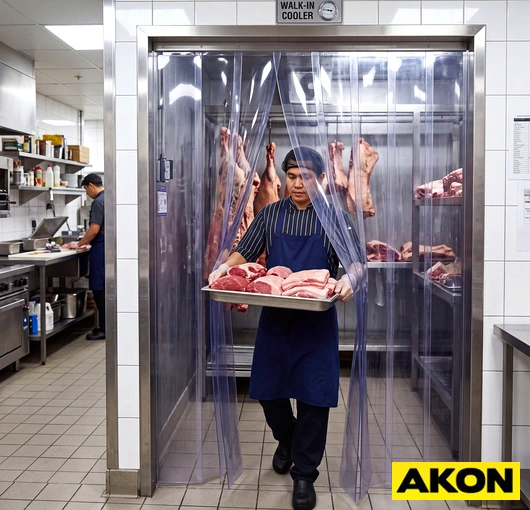

cooler and freezer strip curtain uses (1)

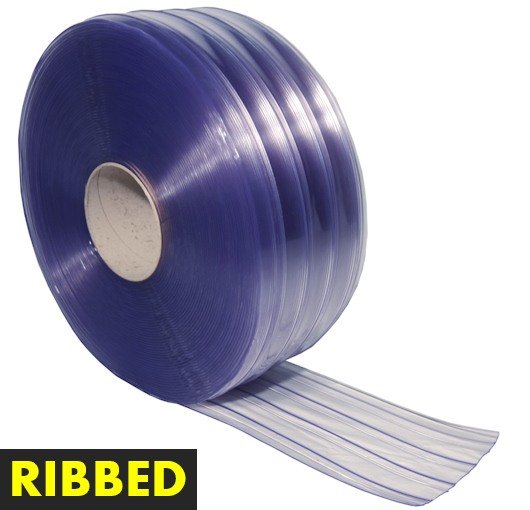

ribbed-corrugated-replacement-pvc-strips

Replacement Strips – Freezer and Cooler Strips

Name: Replacement Strips - Freezer and Cooler Strips
SKU: replacementstripsfreezercoolerstrips36clearready
Availability: InStock

$3.20 – $88.50

Strip Type

Length

Finish

Clear

SKU: replacementstripsfreezercoolerstrips36clearready Categories: Bulk Rolls, Freezer / Cooler, Replacement Strips, Strip Curtains, USDA Tags: Rolls, Strip Curtains, USDA

Description
Additional information

Description

Material Choosing The Correct Strips Calculating Strips FAQ Ordering

Material

Description

Clear - Stays clear 20% longer
Low Temperature Range -40°F
Phthalate-Free Formulation
UV Absorber - Strips will not discolor
Crystal Clear - Extrusion Clear Processing for maximum line of sight

usda-approved

Anti Fungi

In high moisture applications (food processing, refrigeration, cold chain) a common problem is the growth of fungi on the surface of the PVC strips. We use anti-fungal inhibitors to prevent fungal growth on the surface of the PVC strip or sheet.

Strip Dimensions

6" wide strips | .060" Thick
8" wide strips | .080" Thick
12" wide strips | .120" Thick

Ratings and Certifications

CFM and NFPA-701 flame retardant certifications
Exceeds OSHA requirements
5 Year warranty on manufacturing defects

Hole Spacing

The pvc strip curtains come with holes punched every 2" (see example of 8" wide strip below). This allows the strips to fit the vast majority of strip curtain hardware on the market. Please note that you can also purchase the strips without any mounting holes. Some customers choose to use their own hardware and punch their own mounting holes onsite. Loop style is also available for mounting to bars and tubes. If you want just the strips then on this form select "no hardware."

8-inch-welding-strip-bulk-roll

Choosing The Correct Strips

Calculating Strips

FAQ

What is the spacing on the holes for the strips?
The holes are on 2" centers as shown below. The below strip is an 8" wide strip but all of the strips have the same spacing so that the strips fit studded hardware systems.

strip-curtain-hole-pattern

Should I order the strips a little taller than the opening?
Only if you are wanting the wall mount hardware. With wall mount hardware order the strips 6" taller and 6" wider than the opening you are trying to cover since you are mounting to the face of the opening. Otherwise order the strips to the exact size of the opening.

Are the height of the strips measured from the hole or the top of the strip?
The height is measured from the top of the strip to the bottom of the strip. The holes are located .75" down from the top of the strip.

How do you cut the strips in the field?
You use a utility knife and a straight edge to keep the cut straight.

Are the strips ready to hang and already punched?
Yes the strips are shipped out and ready to be hung right out of the box.

Ordering
