Description
Curtain Track
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Mount Hardware
- Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
- Grommets Only - You can then use many DIY methods to hang the curtains.
- Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Attention CA Residents: Prop 65 Warning
Opaque Curtains - 13oz, 18oz
- Vinyl coated polyester reinforced with scrim
- NFPA fire retardant, CFM fire retardant
- 18oz is outdoor-rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as -10° F to 160° F
- All colors are the same price
- 13 oz = .016″ thick, 1.44 oz. per square foot
- 18 oz = .020″ thick, 2.0 oz. per square foot
Clear Curtains - 20mil and 40mil
- Clear double polished PVC
- NFPA fire retardant, CFM fire retardant
- Outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to 140° F
- 20 mil = 20mil thick, 1.98 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot

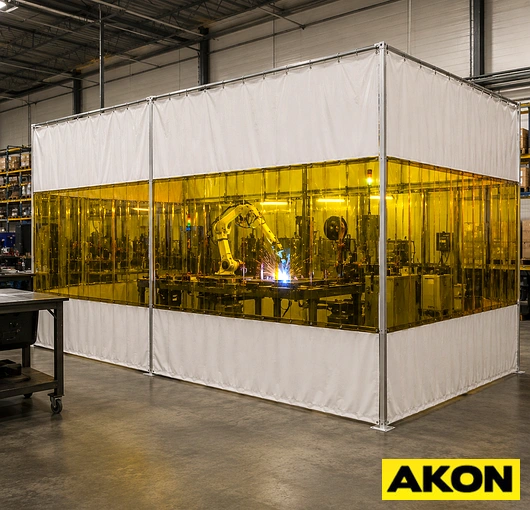

Tinted Curtains - 14mil and 40mil
- Ideal for welding applications
- Blocks most UV radiation for welding
- NFPA fire retardant, CFM fire retardant
- 40mil is outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to to 140° F
- 14 mil = 14mil thick, 1.44 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Opaque Colors
WARNING: Please note that colors in video are a representation only.
On site colors will differ slightly due to lighting and your digital
device image settings. For exact color needs please ask for a sample.
Tinted Colors
Curtain Features

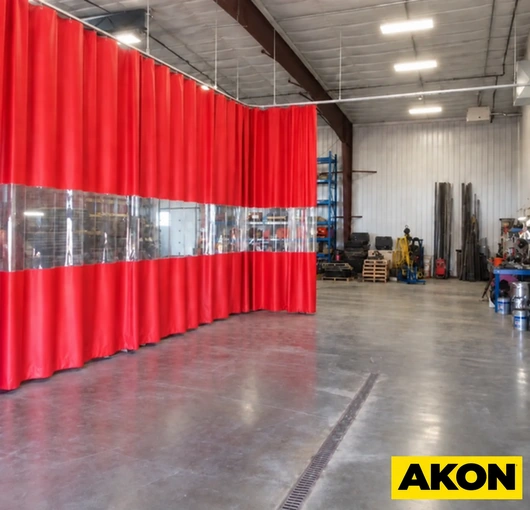

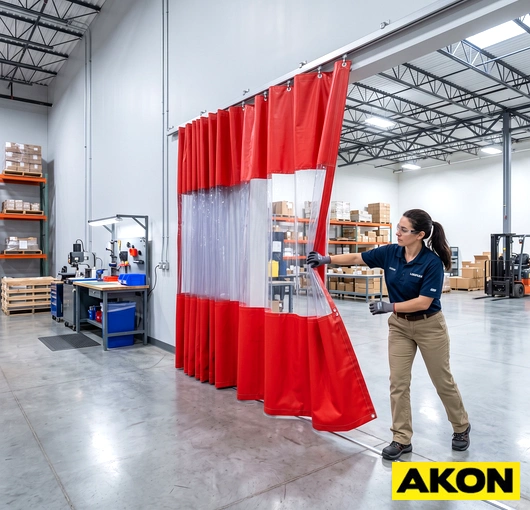

Clear Vision Panels
Vision panels can be added to allow for a clear line
of site through the curtain. Standard vision panels
are 54" in height but can be made to any size.

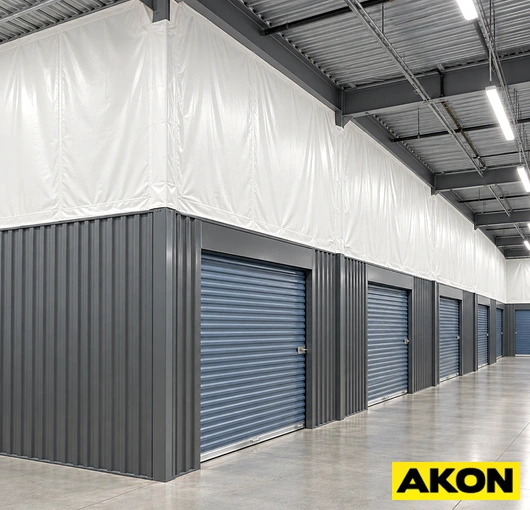

Curtain Valances
A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purling.
They can be rectangular or follow the slope of the roof.
Floor Sweeps
A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.
Anchor Straps
Velcro straps hold your curtain in place if wind
is present or a more secure curtain is required.
These anchors feature Velcro straps which loop
through a D-ring which is anchored into the
cement floor. Typically spaced every 4'.
Seal Velcro
Seal Velcro also known as adhesive Velcro sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.
Chain Weights
If you have a slight breeze or are power washing
near the curtain then we can add a galvanized
3/16" chain weight to the bottom of the curtain.
Connecting Curtains
Velcro
Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.
Magnets
Seal magnets are an idea way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.
Entry Options

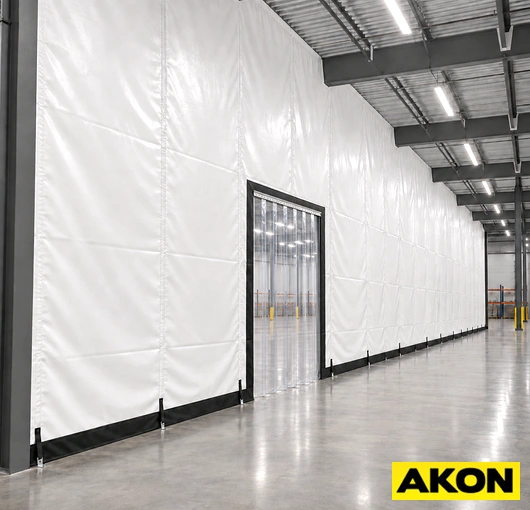

Sewn In Strip Doors
Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.
Free Standing Strip Doors
For motorized traffic a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall ensuring longevity
and performance for motor traffic and high use.
Swinging Impact Doors
A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy duty doors can
take a lot of abuse from carts, fork lifts or
heavy foot traffic. View Styles
Roll Up Doors
Supported with a free-standing steel frame
the power roll up doors can be opened and
closed via remote from a fork lift. Door
styles and prices vary based on frequency
of opening and closing, speed requirements
and size. View Styles
Key Benefits
- Less expensive than rigid walls
- Can be taken down quickly when not needed
- Can be re-purposed in other areas
- Ability to purchase more curtains and attach to existing curtains
- Divide work areas quickly
- Industrial curtains improve worker safety
- Quick to roll out of way when not in use
- Easy to clean with slick surface of Vinyl
- Contain air migration, odors, dust, over-spray
- Lifetime warranty on all hardware and 5 year warranty on curtains
Common Layouts
AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
Width
- Measure the distance that you are trying to cover and then add 5% to that dimension and enter it into the width box.
- TIP - The reason you want to add 5% is for proper drape of the curtain so it properly covers the span.
Height
- Measure the distance from the floor to the above mounting point (from where you would attach the curtain track) and subtract 3 inches, and then input it into the height box.
- TIP - If you are not using any hardware, then you don't need to subtract the 3"
Need More Help? Watch This
Common Questions
Yes, the track is made to be field cut on site using a hack saw or Sawzall.
For example, if you have 120” of curtain track then a radius corner will be make the overall length of side “A” 120”+24”=144”
The track is modular in design and will arrive in pieces that have a simple bolt together design.
The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.
Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'. Choose the ceiling mount style on this form and in the notes ask for straight splices instead of the ceiling mounts.
It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.
The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
Track Spacing
- Track Thickness: 16 gauge
- Material: Galvanized Steel
- Dimensions: 1.45″w x 1.25″h
- Capacity: 125lbs per linear foot
- Warranty: Lifetime
Dimensions
Beam Flange
Ceiling Mount
Threaded Rod Mount
Wall Mount
